VIDI-P01 is full-automatic counting and packaging machine , apply to hot-sealed technology with tight,smooth and flat sealing. Also have a seperate control system, which can free set heating time, bag size. The packing speed is fast, counting data is accurate, It can be used on various types of small parts counting and packing.
Equipment Parameters：
1. Machine exits/passages Dimension：46*95 mm
2. Weight per package：≤5kg
3. Packing Speed：1~3bags /minute
4. Packing Materials：PE Film，PE Film single thickness is 0.08mm
5. Bag making form：Up and Bottom Sealing
6. Bag Dimension：Length：180~420mm ; Width：280~300mm
7. Power：AC 220V/50HZ
8. Air Pressure：5~7Kg
9. Machine Net Weight：160Kg
MachineVIDI-P01-Series
Layout
01
Layout
02
Specification:
|
Type
|
VIDI-P01-Series
Small Counting Packing Machine
|
VIDI-P02-Series
Middle Counting Packing Machine
|
VIDI-P03-Series
Counting Packing Machine
|
|
Equipment
Dimension
|
2500X1100X1850MM
|
2600X2300X2300MM
|
1650MM*850MM*1700MM
|
|
Power
|
220V
50HZ/60HZ
1KW
|
220V
50HZ/60HZ
2KW
|
220V
50HZ/60HZ
|
|
Air
|
0.5mpa
Above
|
0.5mpa
Above
|
0.5mpa
Above
|
|

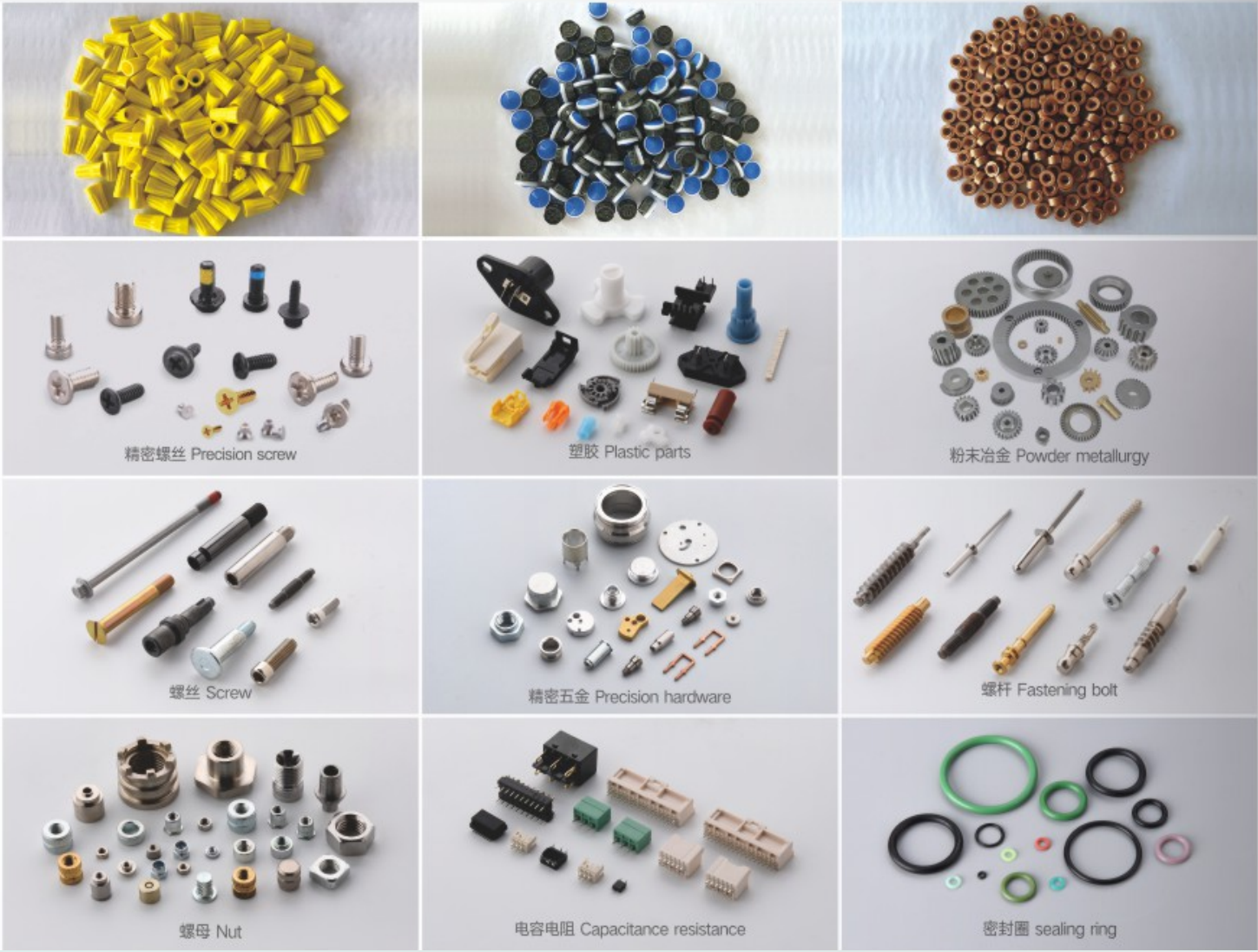

Parts
Spec Range
|
0.6x0.6mm-10x10mm
|
3x3mm-30x20mm
|
3mm-50mm
|
|
Counting
Speed
|
4000-15000pcs/min
|
1500-5000pcs/min
|
1000-2000pcs/min
|
|
Counting
Accuracy
|
Single
Passage＜0.4%
Double Passage＜0.3%
Triple
Passage＜0.15%
|
＜0.2%
|
0.02%
|
|
Control
Method
|
Computer
& PLC
|
Computer
& PLC
|
Computer
& PLC
|
|
Notes
|
Can
Be Customized
|

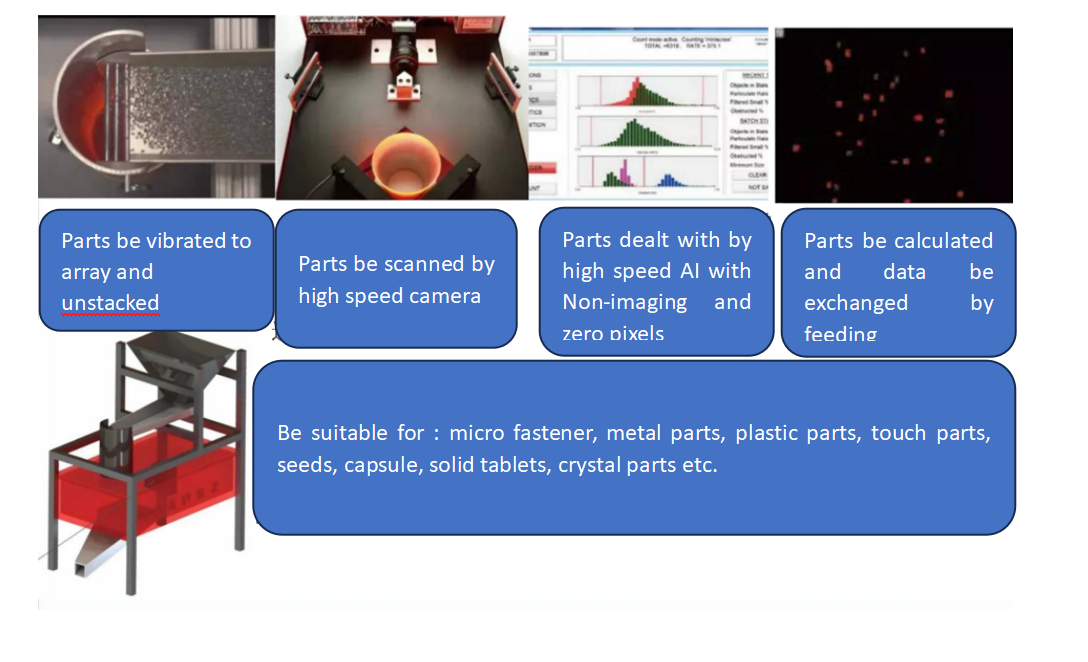

Counting
Principle:
